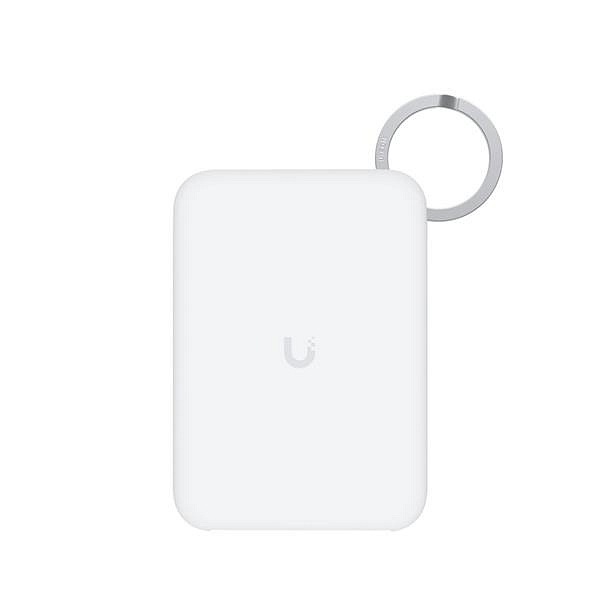

A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.

2.4 GHz and 5 GHz unlicensed band scanning


240 minutes continuous scanning battery life


BLE smartphone pairing with USB-C charging port


iPhone Magsafe attachable support*

*A mag-safe case is required to attach this device to an iPhone.

Technical Specifications
Mechanical
Dimensions
78.5 x 50.5 x 7.9 mm
(3.1 x 2 x 0.3")
Weight
32 g (1.1 oz)
Enclosure Material
Polycarbonate
Weatherproofing
IP55
Hardware
Power Method
Li-ion battery
Power Supply
Rechargeable Li-ion battery, 3.7V DC, 300mAh
Supported Voltage Range
USB-C: 5V DC/1A
Max. Power Consumption
32.4mW
SSID Scan
Frequency Range
2.4 to 2.5 GHz
5.15 to 5.85 GHz
Amplitude Range
-96 dBm to 0 dBm
Amplitude Resolution
1 dBm
LEDs
W/B/R
Buttons
(1) Power
(1) Factory-reset
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
Mobile App
UniFi WiFiman iOS™: Version 0.18.0 and later
UniFi WiFiman Android™: Version 1.15.0 and later
