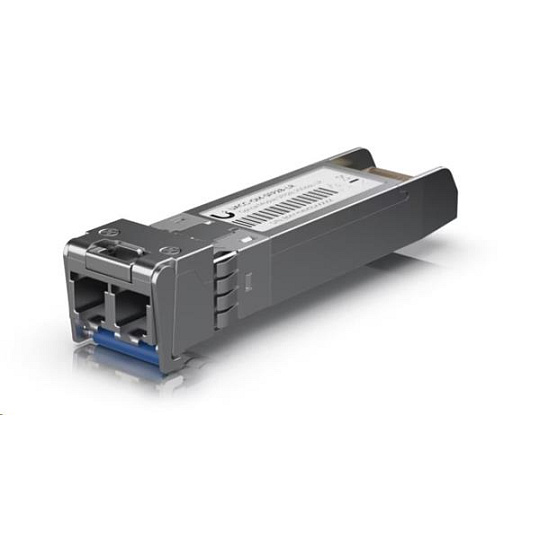

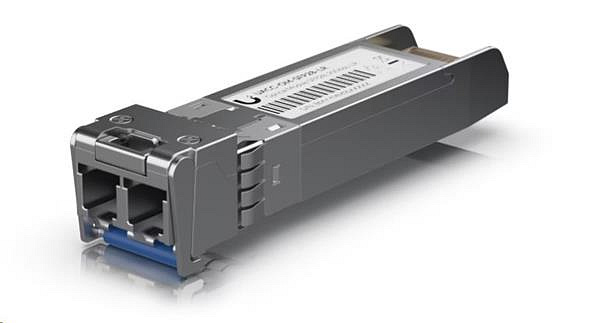

SFP28 transceiver that supports 25G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.

Max data rate: 25 Gbps


Compatible with SFP28, SFP+, and SFP interfaces


Duplex LC UPC connector


Supports single-mode fiber connections up to 10 km*

*Fiber cable is not included.



Technical Specifications
Overview
Form Factor
SFP28
Connector
Duplex LC UPC
Supported Media
Single-Mode Fiber
TX Wavelength
1310 nm
RX Wavelength
1310 nm
Supported Data Rate
1 / 10 / 25 Gbps
Supported Cable Distance
10 km (6.2 mi)
Max. Power Consumption
1.3 W
Pack Options
Single Unit
Ambient Operating Temperature
0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
