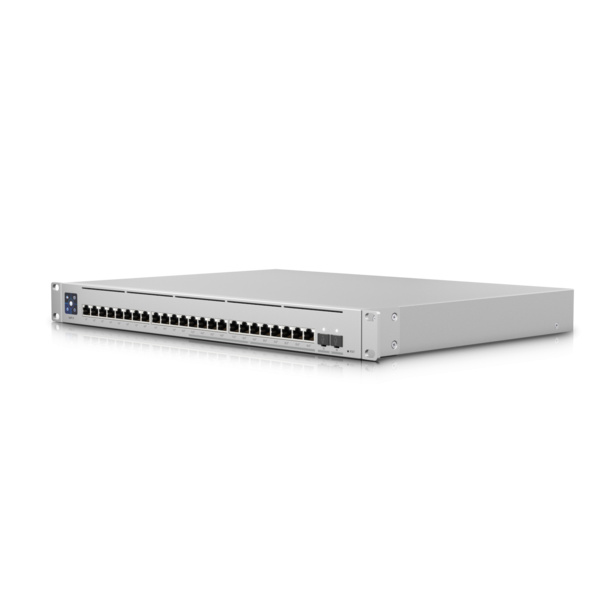

Switch Enterprise 24 PoE Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks. Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure. Features: (12) 2.5G 802.3af/at PoE+ RJ45 ports (12) 1G 802.3af/at PoE+ RJ45 ports (2) 10G SFP+ ports 400W total PoE capacity 1.3" touchscreen with AR switch management UniFi SmartPower RPS DC input Managed with the UniFi Network Application (web and mobile): version: 5.14.12 or higher Technical Specifications Mechanical Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") Weight Without Mount: 5.11 kg (11.27 lb) With Mount: 5.2 kg (11.46 lb) Enclosure Materials SGCC Steel Mount Material SGCC Steel Hardware Total Non-Blocking Throughput 62 Gbps Switching Capacity 124 Gbps Forwarding Rate 92.25 Mpps Max. Power Consumption 550W Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A Power Supply AC/DC, Internal, 550W Management Interface Ethernet In-Band Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet SFP+ Interfaces (2) 1/10G SFP+ PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Max. PoE+ Wattage per Port by PSE 34.2W Voltage Range 802.3af Mode 44 to 57V Voltage Range 802.3at Mode 50 to 57V Services SMB Layer 3 PoE Gigabit Ethernet Switch ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 10 - 95% Noncondensing Certifications CE, FCC, IC LEDs System (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted Ethernet White: Link or Activity SFP+ White: Link or Activity
