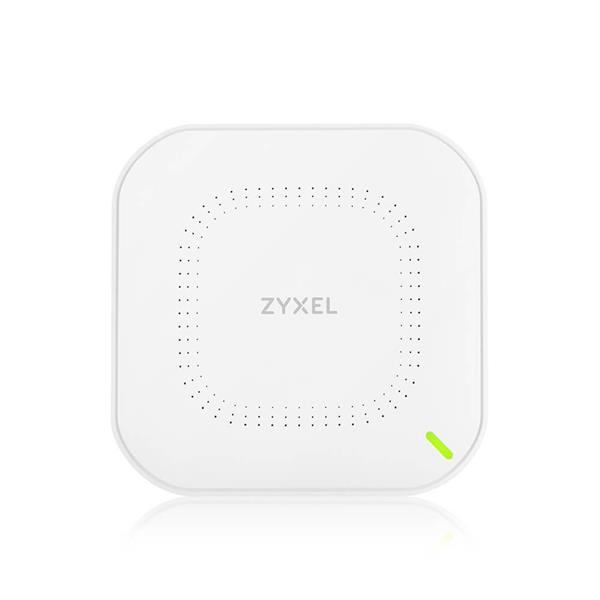

Zyxel NWA50AX je skutočný prístupový bod WiFi 6, ktorý prichádza so sadou funkcií, ktoré sú vhodné pre malé podniky a používateľov SoHo, ktorí chcú prejsť na 11ax (WiFi 6) Prístupový bod, ktorý podporuje frekvencie 2,4 GHz aj 5 GHz, je zameraný na to, aby vám umožnil vychutnať si všetko to najlepšie, čo WiFi 6 ponúka, ako sú vyššie rýchlosti, aj keď je preťažený alebo v prostredí s vysokou hustotou, rozšírený dosah vo vašej bezdrôtovej sieti, zvýšená kapacita pre nasadenie internetu .

Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40-, 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 + 2x2 MIMO embedded antenna
Antenna gain 2.4GHz: 3 dBi
5GHz: 4 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption
WPA Personal
WPA2 Personal
WPA3 Personal
Authentication No
Access management
MAC filtering
Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode
Nebula Cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
140 x 140 x 37.5/5.51 x 5.51 x 1.48
Weight (g/lb.)
290/0.64
Packing Dimensions (WxDxH)(mm/in.)
240 x 155 x 60/9.45 x 6.10 x 2.36
Weight (g/lb.)
600/1.32
Included accessories
Power adapter
Mount plate
Mounting screws
MTBF (hr) 1,010,980
Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893; LP0002
EN 60601-1-2
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI
CNS14336-1
