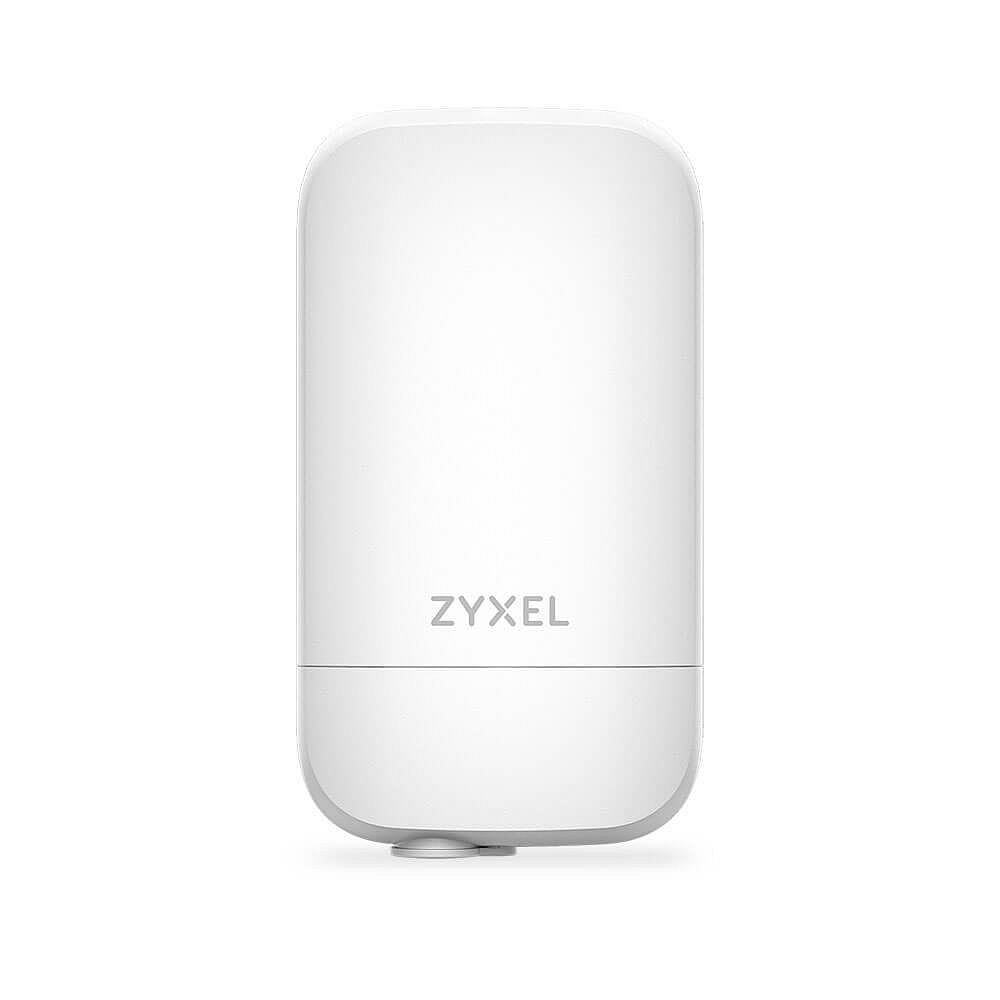

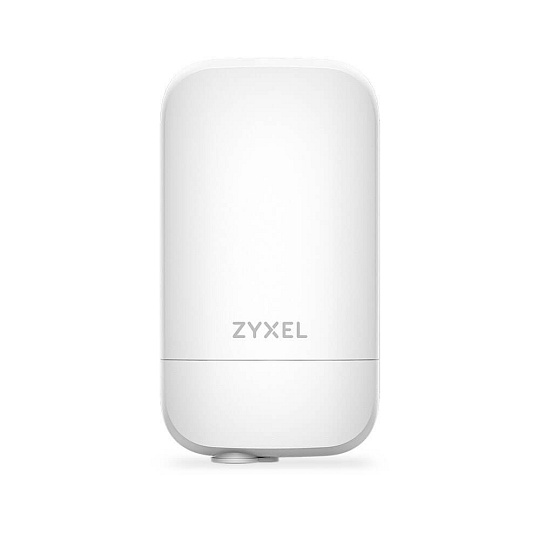

Zyxel NWA55AXPRO AX3000, 2x2 MU-MIMO, Internal Antenna, Smart Mesh, Outdoor IP55, PoE+ (802.3at), Standalone/Nebula Cloud Managed Including Power Adapter

Wireless
Standard

IEEE802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 575Mbps

5GHz: 2400Mbps

Frequency band

2.4GHz:

USA (FCC): 2.412 to 2.462GHz

Europe (ETSI): 2.412 to 2.472GHz


5GHz:

USA (FCC): 5.15 to 5.35GHz; 5.470 to 5.850GHz

European (ETSI): 5.15 to 5.35GHz; 5.470 to 5.725GHz

Bandwidth

20-, 40- ,80- and 160-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

23/26dBm


EU (2.4GHz/5GHz):

20/25dBm

RF Design
Antenna type

Internal Antenna

Antenna gain

2.4GHz:

3dBi, 2x2:2SS


5GHz:

4dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Features
Band steering

Yes

WDS/ Smart Mesh*2

Yes

Wireless bridge

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced cellular coexistence

Yes

Security
Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X/ RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking
IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management
Operating mode

Cloud managed

Standalone

Web UI/CLI

Yes

SNMP

No

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
180 x 99 x 35.9 / 7.09 x 3.90 x 1.41

Weight (g/lb.)
300/0.66

Packing

Dimensions (WxDxH)(mm/in.)
197 x 184 x 58 / 7.56 x 7.24 x 2.28

Weight (g/lb.)
671/1.48

Included accessories

PoE injector

Mounting screws

MTBF (hr)

695,292

Physical Interfaces
Ethernet port

1 x 1GbE LAN

Power

PoE (802.3af): power draw 12W

PoE modes

IEEE 802.3af: Unrestricted

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications
Weather protection

IP55

Operating

Temperature
-30°C to 50°C / -22°F to 122°F

Humidity
10% to 90% (non-condensing)

Storage

Temperature
-40°C to 70°C / -40°F to 158°F

Humidity
10% to 90% (non-condensing)

Certifications
Radio

FCC Part 15C

FCC Part 15E

ETSI EN 300 328

EN 301 893

LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55032

EN55035

EN61000-3-2/-3

BSMI CNS15936

Safety

EN 62368-1

IEC 62368-1

BSMI CNS15598-1
