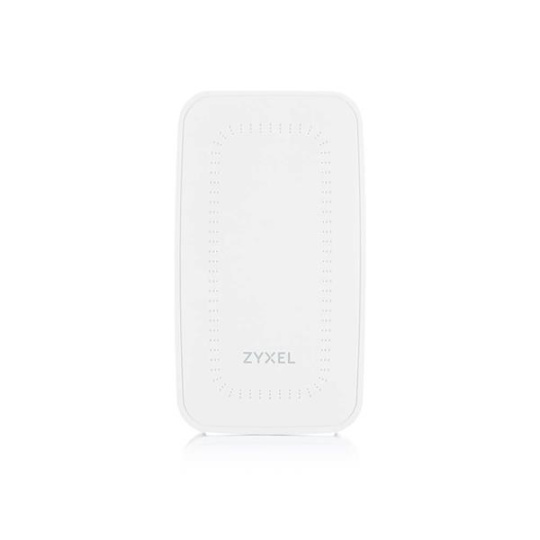

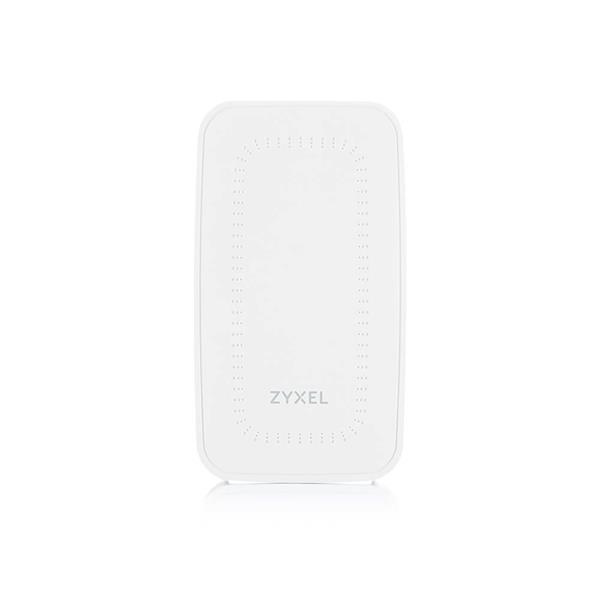

Zyxel WAC500H je určený k inštalácii do jednotlivých miestností a dokáže z ethernetových zásuviek vytvoriť nielen bezdrôtový prístupový bod pre WiFi, ale tiež gigabitový prepínač s PoE pre napájanie koncových zariadení. Vďaka riešeniu NebulaFlexTM TM Pro je možné prístupový bod WAC500H riadiť prostredníctvom we-bového užívateľského rozhrania, kontrolérom alebo pomocou cloudovej platformy Nebula (na báze ročnej bezplatnej licencie).

Parametre:
Standard IEEE802.11 ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4 GHz:
300Mbps
5 GHz:
866Mbps
Frequency band 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz)
23/26dBm
EU (2.4GHz/5GHz)
19/26dBm
RF Design
Antenna type 2x2 MIMO Embedded Antenna
Antenna gain 2.4GHz
3 dBi
5GHz
4 dBi
Minimum receive sensitivity Up to -99 dBm
WLAN feature
Band Steering Yes
WDS / Mesh Yes
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v
DCS Yes
Load balancing Yes
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
Nebula Cloud managed
Controller-managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Zyxel Wireless Optimizer
WiFi AP planning
WiFi coverage detection
Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
173 x 97 x 29 / 6.81 x 3.82 x 1.14
Weight (g/lb.)
223/0.49
Packing Dimensions (WxDxH)(mm/in.)
195 x 120 x 53 / 7.68 x 4.72 x 2.09
Weight (g/lb.)
444/0.98
Included accessories Multi-purpose mounting bracket with screws
MTBF(hr) 542,017
Physical Interfaces
Ethernet port
1x 10/100/1000M uplink
2x 10/100/1000M downlink (Including one PoE PSE)
Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1A (PoE PSE disabled)
PoE 802.3at: power draw 18 W (Include 7W for PoE PSE)
PoE 802.3af: power draw 11 W (PoE PSE disabled)
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
Models
Wireless
Standard
MIMO
Wireless speed
Frequency band
Bandwidth
Conducted typical transmit output power
RF Design
Antenna type
Antenna gain
Minimum receive sensitivity
WLAN feature
Band Steering
WDS / Mesh
Fast roaming
DCS
Load balancing
Security
Encryption
Authentication
Access management
Networking
IPv6
VLANs
WMM
U-APSD
DiffServ marking
Management
Operating mode
ZON Utility
Zyxel Wireless Optimizer
Web UI/ CLI
SNMP
Physical Specifications
Item
Packing
Included accessories
MTBF(hr)
Physical Interfaces
Ethernet port
Power
Environmental Specifications
Operating
Storage
Certifications
Radio
EMC
Safety
* All specifications are subject to change without notice.
