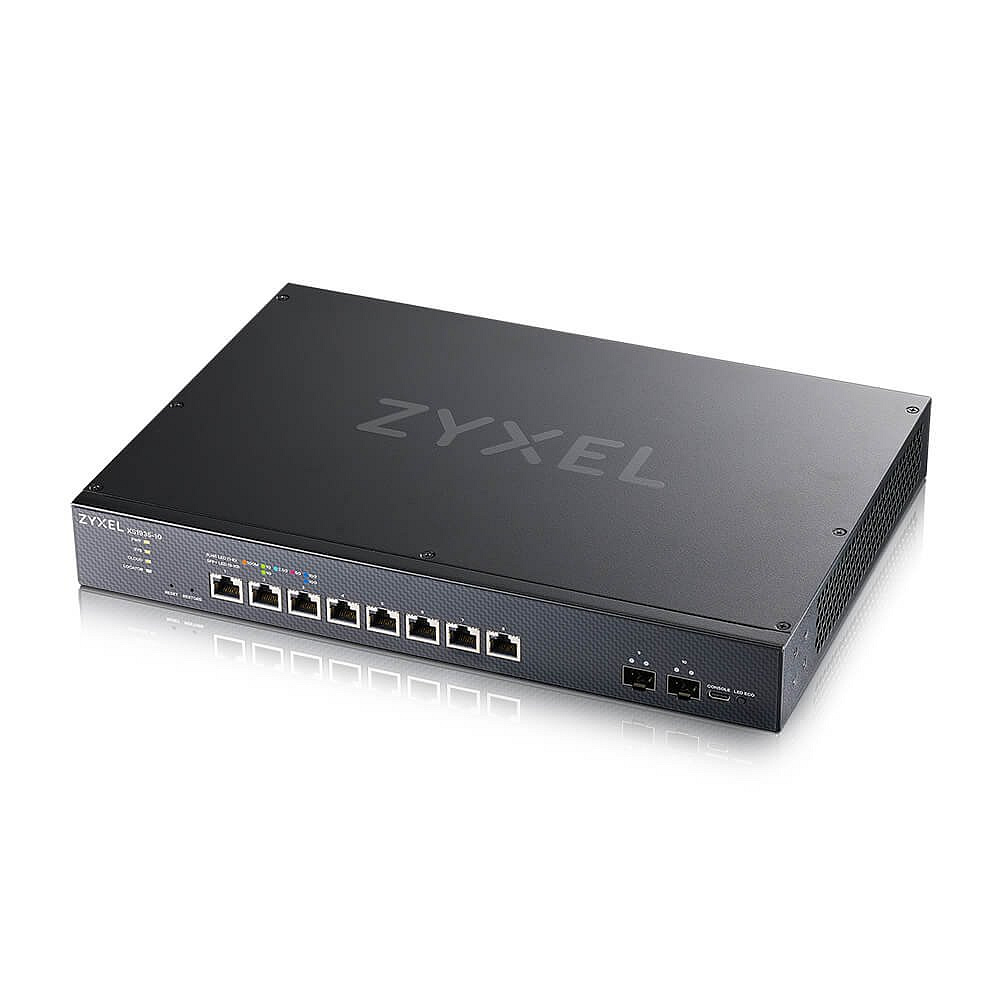

Zyxel XS1935-10, 8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink, hybrid mode, standalone or NebulaFlex Cloud

Description
Product name

8-port 10G Lite-L3 Smart Managed Switch with 2 10G Uplink

Switch class

Smart Managed

Port Density
Total port count

10

100M/1G/2.5G/5G/10G Ethernet (RJ-45)

8

10-Gigabit SFP+

2

PoE
PoE ports

-

Total PoE budget (watts)

-

IEEE 802.3bt PoE++ (90W)

-

Performance
Switching capacity (Gbps)

200

Forwarding rate (Mpps)

148.8

Packet buffer (byte)

2MB

MAC address table*

16K

Jumbo frame (byte)

12KB

L3 forwarding table*(IPv4/IPv6)

Max.512 IPv4 entries;
Max.512 IPv6 entries

Routing table*

32

VLAN routing

Yes

IP interface (IPv4/IPv6)

32/32

Flash/RAM

32MB/256MB

Power
Input

100 - 240 V AC, 50/60 Hz

Min. power consumption (watts)
Without any port connection

19.94

Max. power consumption (watts)
All ports full load without PoE

56.78

Max. power consumption (watts)
All ports full load with PoE

-

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
330 x 230 x 44/12.99 x 9.06 x 1.73

Weight (kg/lb.)
2.4/5.29

Included accessories

Power cord
Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection

2KV

Power supply surge protection

Line-GND: 2KV

Line-Line: 1KV

ESD protection (air/contact)

8KV/6KV

Environmental Specifications
Operating

Temperature
-20°C to 50°C/-4°F to 122°F

Humidity
5% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
5% to 95% (non-condensing)

MTBF (hr @ 25°C)

471,896

Heat dissipation (BTU/hr)

159.01

Acoustic noise (min/max, dBA)

27.45/47.15
