Description
Product name

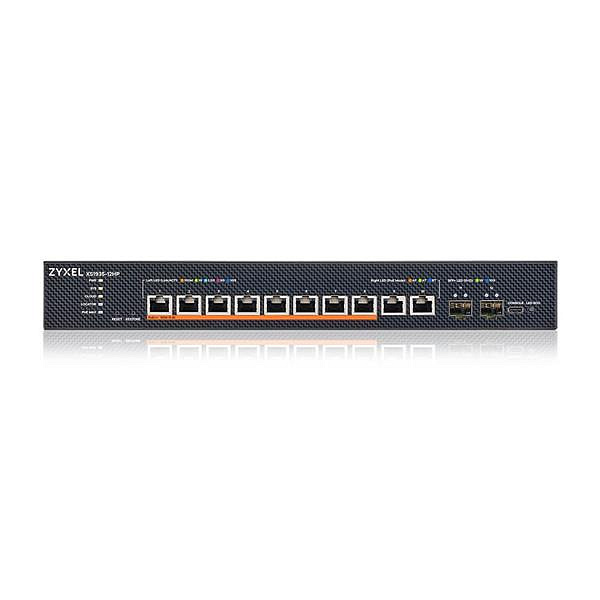

8-port 10G Multi-Gig PoE Lite-L3 Smart Managed Switch with 4 10G Uplink

Switch class

Smart Managed

Port Density
Total port count

12

100M/1G/2.5G/5G/10G Ethernet (RJ-45)

10

10-Gigabit SFP+

2

PoE
PoE ports

8

Total PoE budget (watts)

400

IEEE 802.3bt PoE++ (90W)

Port 1-8

Performance
Switching capacity (Gbps)

240

Forwarding rate (Mpps)

178.5

Packet buffer (byte)

2MB

MAC address table*

16K

Jumbo frame (byte)

12KB

L3 forwarding table*(IPv4/IPv6)

Max.512 IPv4 entries;
Max.512 IPv6 entries

Routing table*

32

VLAN routing

Yes

IP interface (IPv4/IPv6)

32/32

Flash/RAM

32MB/256MB

Power
Input

100 - 240 V AC, 50/60 Hz

Min. power consumption (watts)
Without any port connection

26.4

Max. power consumption (watts)
All ports full load without PoE

64.5

Max. power consumption (watts)
All ports full load with PoE

511.6

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
330 x 230 x 44/12.99 x 9.06 x 1.73

Weight (kg/lb.)
2.8/6.17

Included accessories

Power cord
Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection

2KV

Power supply surge protection

Line-GND: 2KV

Line-Line: 1KV

ESD protection (air/contact)

8KV/6KV

Environmental Specifications
Operating

Temperature
-20°C to 50°C/-4°F to 122°F

Humidity
5% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
5% to 95% (non-condensing)

MTBF (hr @ 25°C)

261,963

Heat dissipation (BTU/hr)

1654.88

Acoustic noise (min/max, dBA)

26.367/49.7
