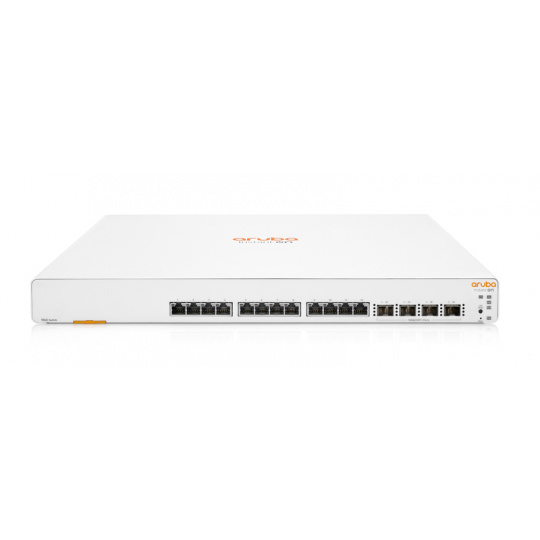

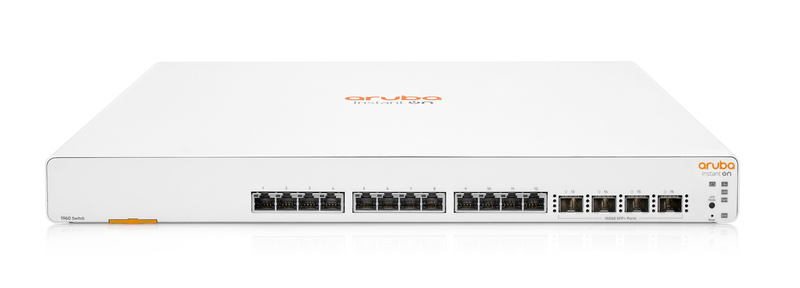

Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A) I/O ports and slots 12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports Dimensions 350.5(d) x 442.5(w) x 43.95(h) mm Weight 9.6 lb (4.3 kg) CPU Single Core ARMv7 Cortex-A9 @2Ghz 100 Mb Latency < 7.4 uSec 1000 Mb Latency < 4.2 uSec 10000 Mb Latency < 1.1 uSec Throughput (Mpps) 238 Mpps Capacity 320 Gbps Routing Table size (# of static entries) 512 IPv4/IPv6 MAC Address table size (# of entries) 16,000 entries Reliability MTBF (years) 88.8 Operating temperature 0-40°C, 0-10,000 ft Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics1 LWAd = 4.0 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) Electrical Characteristics Frequency 50Hz/60Hz AC voltage 100-127VAC / 200-240VAC Current 1.3A/0.4A Maximum power rating 100-127V: 130W 200-220V: 160W Idle power 100-127V: 60W 200-220V: 80W Power Supply Internal power supply
