UPS Eaton 5PX sa vyznačuje interaktívnym zálohovaním a vo stupňoch voliteľnej doby zálohovania pre servery, dátové úložisko, VoIP a zariadenia dátových sietí. Ide o dokonalú UPS pre ochranu moderných IT zariadení, vybavenou intuitívnym LCD displejom novej generácie, meranie spotreby energie až na úroveň jednotlivých skupín zásuviek s energetickou účinnosťou až 99%

PRODUCT NAME

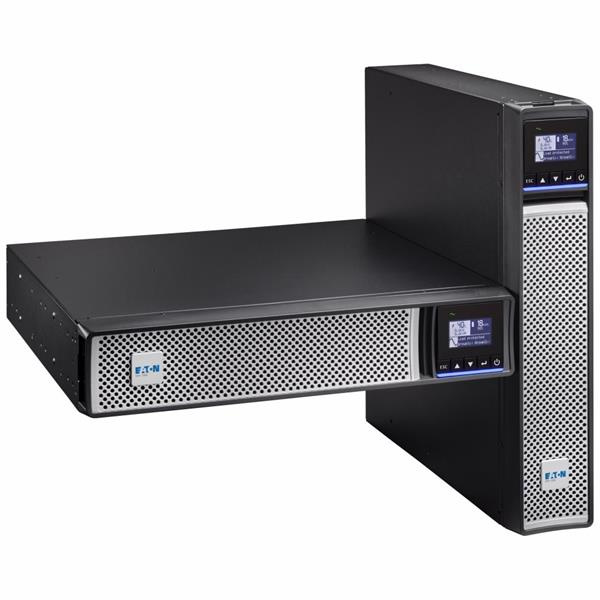

Eaton 5PX Gen2 UPS
CATALOG NUMBER
5PX1000IRT2UG2
MODEL CODE
Eaton 5PX 1000i RT2U G2
UPC
743172104731
PRODUCT LENGTH/DEPTH
448 mm
PRODUCT HEIGHT
85.5 mm
PRODUCT WIDTH
438 mm
PRODUCT WEIGHT
19.6 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
CERTIFICATIONS
CE
cTUVus
EAC
Cm
UKCA
Ukr
ENERGY STAR certified
MODEL CODE
Eaton 5PX 1000i RT2U G2
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1000 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
98
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
LCD display for real-time status and measurements
Long backup time with up to 4 optional EBM
Meter energy consumption (down to the managed outlet groups)
Versatile product for rack or tower installation
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
1 USB port + 1 serial port
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BACK-UP TIME
6 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
TEMPERATURE RANGE
0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
47 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
3000 m
