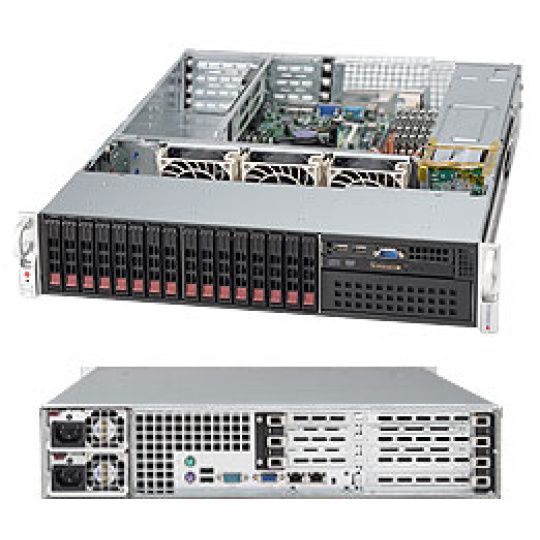

Supermicro® CSE-213AC-R1K23LPB 2U chassis

Chassis Manual Key Features 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 1 x 5.25" drive bay 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch ... viac
908.27 € bez DPH
Na dotaz
1 089.92 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: i286_S9SC213AC-R1K23LPB
Záruka: 24 mes.
Výrobca: Supermicro
Popis a parametre

Supermicro® CSE-213AC-R1K23LPB 2U chassis

Chassis Manual Key Features 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 1 x 5.25" drive bay 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm 7 low-profile expansion slot(s) 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control Product SKUs CSE-213AC-R1K23LPB SuperChassis 213AC-R1K23LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Gross Weight 60 lbs (27.22 kg) Packaging (W x H x L) 29" (737 mm) x 11" (279 mm) x 38.7" (983 mm) Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards 1 x 5.25" drive bay Backplane 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive bay Optional 2 x USB 2.0 ports Optional 1 x COM port tray Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED Motherboard (for CSE- 213AC-R1K23LPB) X11DPi-N X11DPi-NT Servers (for CSE- 213AC-R1K23LPB) 2029P-C1R 2029P-C1RT Systems Cooling Fans 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm Power Efficiency 96% Total Output Power and Input 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 83A (100Vac - 127Vac) Max: 100A (200Vac - 240Vac) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT216-8824 O/P: 12V/100 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Standard Parts List Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 HD Backplane BPN-SAS3-213A 1 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG Cable(S) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) Cable(S) CBL-0217L 1 16 pin control panel converter cable for SC826,846, 23.5cm, PBF CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836 Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis Front Panel MCP-280-00018-0N 1 SC826 front control board adapter Drive Tray(s) MCP-220-00009-01 1 Black 5.25"; drive tray w/o rail (square pattern) Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 Drive Tray(s) MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT216-8824 1 POWER DISTRIBUTOR FOR SC216 Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216

Supermicro® CSE-213AC-R1K23LPB 2U chassis
