Supermicro® CSE513F-360B 1U chassis

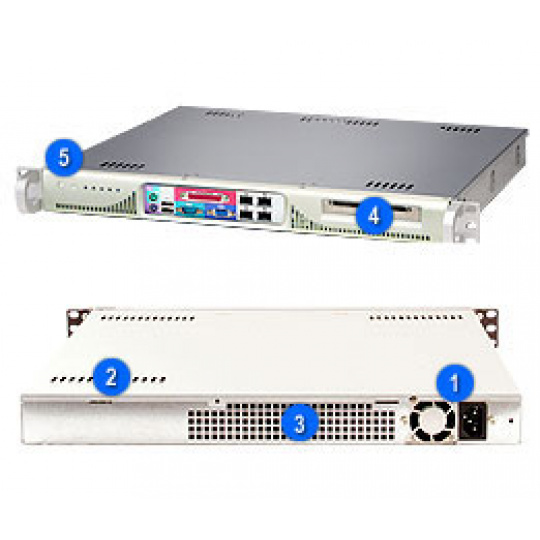

Key Features 1. 260W Power Supply 2. 1x 3.5" Internal Drive Bay 3. 2x 12900 RPM PWM Cooling Fan 4. 1x Full-height, Half-length Front I/O Expansion Slot 5. Power Switch, Reset Button & 5 LED Indicators 6. Front Acess I/O Available Colors Beige Black Downloads ... viac
165.52 € bez DPH
Na dotaz
198.62 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre

Supermicro® CSE513F-360B 1U chassis

Key Features 1. 260W Power Supply 2. 1x 3.5" Internal Drive Bay 3. 2x 12900 RPM PWM Cooling Fan 4. 1x Full-height, Half-length Front I/O Expansion Slot 5. Power Switch, Reset Button & 5 LED Indicators 6. Front Acess I/O Available Colors Beige Black Downloads Chassis Manual Product SKUs CSE-513F-260 SuperChassis 513F-260 (Beige) CSE-513F-260B SuperChassis 513F-260B (Black) Form Factor 14" Mini 1U chassis support for maximum motherboard size - 12" x 9.5" ATX Processor Support Supports single Intel® / AMD processor Dimensions Height 1.7" (43mm) Width 16.8" (426mm) Depth 14.0" (356mm) Gross Weight 14.5 lbs (6.6kg) Available Colors Beige, Black Expansion Slots • 1x full-height half-length PCI expansion slot (Riser Card Required) Drive Bays Internal Bay 1x 3.5" Internal Drive Bay (Standard) 2x 2.5" Internal Drive Support (Optional) SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Ports 2x USB 2x LAN COM Printer Port (Optional) System Cooling Fans 2x 4cm PWM Fans Cooling Components 1x Fan Holder 1x Air Shroud Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ] AC Voltage 100 - 240V, 60-50Hz, 4 Amp Max DC Output 5V + 3.3V ? 140W +5V 25.0 Amp +5V standby 2.0 Amp +12V 18.0 Amp -12V 1.0 Amp +3.3V 15.0 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant

Supermicro® CSE513F-360B 1U chassis
