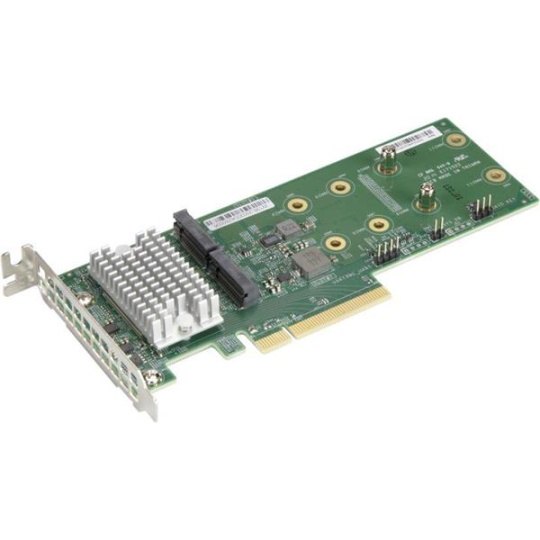

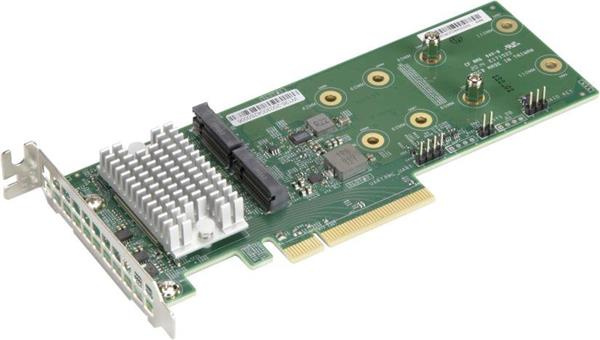

upermicro Low Profile 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID Carrier The Supermicro MegaRAID Low Profile AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SLG4-2H8M2 supports adjustable stand-offs in 22110, 2280, & 2242 M.2 SSD form factors with RAID 0 and RAID 1. AOC-SLG4-2H8M2 This product is only available through Supermicro. Compatible with Supermicro motherboards only. Product Note: Supermicro AOC-SLG4-2H8M2, as a Gen 4 NVMe M.2 adapter, is carrying its new accessory - a uniquely designed heatsink - when being compared to the previous gen product - AOC-SLG3-2H8M2 - for Gen 3 NVMe M.2 and without heatsink. While adopting 22x110mm M.2s, it is suggested to ONLY select the M.2s qualified by referencing each system’s AVL with AOC-SLG4-2H8M2. Compliance RoHS RoHS Compliant 6/6, Pb Free Key Features Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1. • Broadcom SAS3808 I/O RAID Controller • x8 PCIe Gen4 Host interface • Dual M-Key sockets (for 2x M.2 SSD) • Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors • Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules • Supports RAID 0 and RAID 1 • Support MCTP over PCIe/ I2C • Support BMC-enabled management • Support secure erase • Support hardware secure boot • Support on-board LEDs for SSD Activity and Status • UEFI Configuration utility • OS Support: Windows, Linux, and VMWare • Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded) • Thermal operating range: System dependent (55°C or higher w/ enough airflow)
