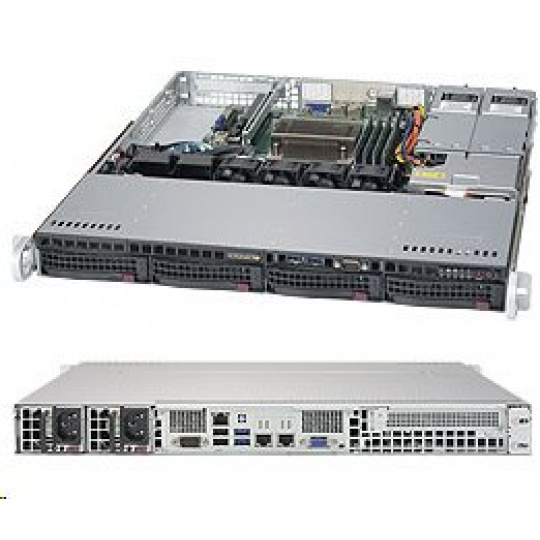

Key Features • HA, Web hosting, File/Print • Mission-Critical, Light load VM 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5,v6 Intel® 6th Gen. Core™ i3 series 2. Intel® C236 chipset 3. 4x 3.5" Hot-swap SATA3 bays w/ RAID 4. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 5. 1 PCI-E 3.0 x8 (in x16) AOC slot 6. 2x GbE ports with Intel® i210-AT 7. Integrated IPMI 2.0 and KVM with Dedicated LAN 8. I/O ports: 1x VGA, 2x COM, 2x USB 3.0 (front/rear), USB 2.0 9. 400W Redundant Platinum Power Supplies w/ BBP® option Product SKUs SYS-5019S-MR SuperServer 5019S-MR (Black) Motherboard Super X11SSH-F Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3 CPU TDP up to 80W System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Video ASPEED AST2400 BMC Input / Output SATA 4x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 3.0 ports (front/rear) 2x USB 2.0 ports Video 1x VGA port Serial Port / Header 2x COM ports (1 rear, 1 header) SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 4 fan headers supporting up to 4 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free Chassis Form Factor 1U Rackmount Model CSE-813MFTQC-R407B Dimensions and Weight Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.8" (503mm) Package 8.5" (H) x 24" (W) x 29.5" (D) Weight Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Expansion Slots PCI-Express 1x PCI-E 3.0 x8 (in x16) AOC slot 1x M.2 connector Drive Bays Hot-swap 4x 3.5" Hot-swap SATA3 drive bays Peripheral Drives Optional Optional 2.5" drive adapter Optional slim DVD drive Backplane SAS/SATA HDD Backplane (SAS support requires optional SAS controller) System Cooling Fans 4x 40x28mm 4-pin PWM Cooling Fans Power Supply 400W (1+1) Redundant Platinum level power supply with PMBus and I2C AC Input 400W: 100-240 V, 50-60 Hz DC Output +5V standby 3 Amp DC Output +12V 33 Amp Certification Platinum Level Certified Platinum Level System BIOS BIOS Type 8MB SPI Flash EEPROM with AMI BIOS BIOS Features DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
