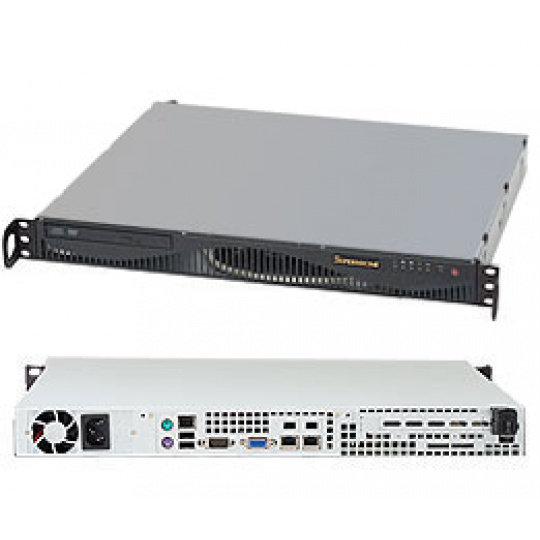

Key Features 1. Single AMD Opteron™ 4000 series (4300 ready) processor (Socket C32) 8/6/4-Core ready; HT3.0 Link support 2. Up to 128GB DDR3 1600MHz ECC Registered DIMM; 4x DIMM sockets 3. 1x PCI-E 2.0 (x8) in x16 slot 4. Two single-Port GbE LAN Controller, 4x USB 2.0 ports, 1x dedicated LAN for system management (IPMI 2.0) 5. 2x Internal SATA Drive Bays; 1x DVD ROM (option) 6. 350W High-efficiency Power Supply Gold Certified Product SKUs AS-1012C-MRF A+ Server 1012C-MRF (Black) Motherboard Super H8SCM-F Processor/Chipset CPU Single 1207-pin Socket C32 Supports one 8/6/4-Core ready AMD Opteron™ 4000 Series processors Chipset AMD chipset SR5650/SP5100 System Memory Memory Capacity 4 DIMM sockets Support up to 128GB Registered ECC or 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs Dual channel memory bus Memory Type DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB Memory Voltage 1.35V or 1.5V On-Board Devices SATA AMD SP5100 (RAID 0, 1) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC Network Controllers Two Intel® 82574L controllers Two single-Port Gigabit Ethernet 10/100/1000BASE-T support VGA Matrox G200eW 16MB DDR2 Super I/O Winbond® W83527HG chip Expansion Slots PCI-E/PCI 1x PCI-E 2.0 (x8) in x16 slot Input / Output SATA 4x SATA2.0 (3Gb/s) Ports LAN 2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI USB 7x USB 2.0 ports 2x Rear, 2x header (4 ports), 1x TypeA VGA 1x VGA port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Ports 1x Fast UART 16550 serial port 1x serial port header System BIOS BIOS Type 16Mb SPI Flash ROM with AMI® BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Chassis Form Factor 1U Rackmount Model SC512F-350B Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 14.5" (369mm) Gross Weight 17 lbs (7.7kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Ports 2x Front USB Ports 1x Serial COM Port Drive Bays Internal HDDs 2x 3.5" internal SATA drive bays Enterprise SATA HDD only recommended Peripheral Drives DVD-ROM Slim DVD-ROM drive (optional) System Cooling Fans 2x 4cm 4-pin PWM fans Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V 18 Amp +5V standby 3 Amp +12V 29 Amp +3.3V 15 Amp Certification Gold Level Certified Gold Certified [ Test Report ] PC Health Monitoring CPU Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V CPU 4-phase Switching Voltage Regulator FAN Total up to five 4-pin fan headers 5 Fan Status Tachometer monitoring Status Monitor for Speed Control Temperature Monitoring for CPU and chassis environment CPU Thermal Trip support I2C temperature sensing logic LED CPU / Overheat LED Suspend-state indicator LED +5V Standby Alert LED Other Features Chassis Intrusion Header Chassis Intrusion Detection Chipkill Support
