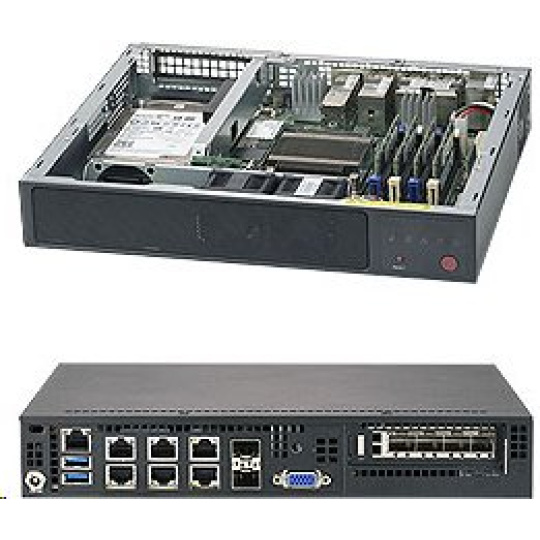

Key Features - Network Security Appliance - SDN-WAN, vCPE controller box - NFV Edge Computing Server - Virtualization Server - IoT Edge Computing/Gateway 1. Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W 2. System on Chip 3. 1 Fixed 2.5" drive bay with bracket 4. 1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot 5. Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2666Mz; in 4 DIMM slots 6. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0 7. 1 VGA, 2 USB 3.0 8. 3x 40x28mm 4-PIN PWM Fan 9. Low-noise DC Power Supply Drivers & Utilities BIOS IPMI Tested Memory Product SKUs SYS-E300-9D-4CN8TP SuperServer E300-9D-4CN8TP (Black) Motherboard Super X11SDV-4C-TP8F Processor/Cache CPU Intel® Xeon® processor D-2123IT, CPU TDP support 60W Cores / Cache 4 Cores, 8 Threads System Memory Memory Capacity Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC/non-ECC RDIMM 4 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM Operating speed up to 2400MHz DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SATA3 (6Gbps) ports via SoC controller Network Controllers Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557 Dual 10G SFP+ via SoC IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics Aspeed AST2500 BMC Input / Output SATA SoC controller for 4 SATA3 (6Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports) LAN 2x 10G SFP+ ports 2x 10GBase-T LAN ports 4x 1GbE LAN ports 1 Dedicated IPMI LAN port USB 2 USB 3.0 ports (rear) Display 1 VGA port TPM 1 TPM 2.0 header Chassis Form Factor Compact Model CSE-E300 Dimensions Width 10" (254mm) / 15" (381mm) - pkg. Height 1.7" (43mm) / 10.87" (276mm) - pkg. Depth 8.9" (226mm) / 5.59" (142mm) - pkg. Weight Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg) Available Colors Black Front Panel Buttons Power On/Off button LEDs Power LED (Hard drive activity LED) Expansion Slots PCI-Express 1 PCI-E 3.0 x8 slot Drive Bays Internal 1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied) System Cooling Fans 3x 40x28mm 4-PIN PWM Fan Power Supply DC Power Adapter with PFC System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup Management Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI Power Management +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL Fan Fans with tachometer status monitoring Status monitor for speed control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
