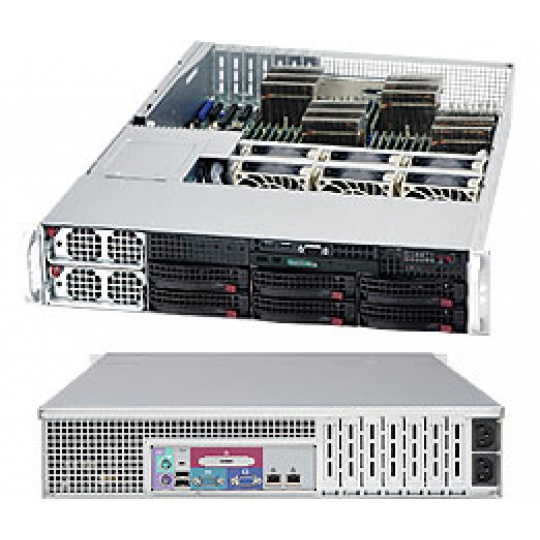

Key Features 1. Quad/4-way AMD Opteron™ 6100 series processors (Socket G34) Twelve/Eight-Core ready 2. Up to 512GB DDR3 Registered ECC 1333/1066/800 SDRAM in 32 DIMMs 3. 2x PCI-e Gen 2.0 x16 slot, 1x PCI-e Gen 2.0 x8 slot, 1x UIO or x8 slot 4. Dual-port GbE LAN Controller, 4x USB 2.0 ports, 1x dedicated LAN for system management (IPMI 2.0) 5. 6x Hot-swap SATA Drive Bays 6. 1400W High-efficiency Redundant Power Supplies 80Plus Gold Certified 7. 6x 4-pin PWM fans with optimal fan speed control Product SKUs AS-2042G-TRF A+ Server 2042G-TRF (Black) Motherboard Super H8QGi-F Processor/Chipset CPU Quad 1944-pin Socket G34 Supports up to four Twelve/Eight-Core ready AMD Opteron™ 6100 Series processors HT3.0 Link support Chipset AMD SR5690/SR5670/SP5100 Chipset System Memory Memory Capacity Thirty-Two DIMM sockets Support up to 512GB DDR3 Reg. ECC 1333/1066/800 MHz memory or 128GB of DDR3 Unb. ECC/non-ECC memory Quad channel memory bus For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks Memory Type Registered ECC or unb. ECC / non-ECC DDR3 1333/1066/800 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB Memory Voltage 1.35V or 1.5V On-Board Devices SATA AMD SP5100 (RAID 0, 1, 10) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC Network Controllers Intel® 82576 controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support VGA Matrox G200 16MB DDR2 graphics Super I/O Winbond® W83527 chip Input / Output SATA 6x SATA2.0 (3Gb/s) Ports LAN 2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI USB 7x USB 2.0 ports 2x Rear, 4x internal header, and 1x type A VGA 1x VGA port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Ports 1x Fast UART 16550 serial port 1x serial port header Expansion Slots PCI-Express 2x PCI-e 2.0 x16 2x PCI-e 2.0 x8 1x UIO slot System BIOS BIOS Type 16Mb SPI Flash ROM with AMI® BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Chassis Form Factor 2U Rackmount Model SC828TQ-R1400LPB
